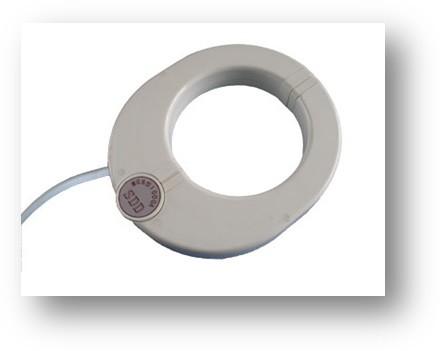

150mm 5000A Split Core Current Transformer With Permalloy Core

Name: 150mm 5000A Split Core Current Transformer With Permalloy Core
Brand: HNMC
Price: 1 USD

Brand Name : HNMC

Model Number : KH150

Place of Origin : China

MOQ : 1

Payment Terms : Western Union, MoneyGram, L/C, T/T

Delivery Time : 1 weeks

Packaging Details : wooden package

Standard input current : 1000-5000A

Frequency : 50-400Hz

Standard accuracy : 0.5 (1A or 5A output), 0.2 (mA output)

Load capacity : 1VA(1Aoutput),5VA(5A output), 4Ω (mA output)

installation : suspension

Output : lead output

Jaw : 150mm

Color : Black or white

Contact Now

Split Core Current Transformer KH150

Weatherproof Outdoor Split-core Current Transformer IP68 0.5 class

Characteristic	apply to test on line below 5000A
Clamp diameter	Φ150mm
Accuracy class	0.5 (1A or 5A output), 0.2 (mA output)
Size	230mm×269mm×44mm
Load capacity maximum	1VA(1Aoutput),5VA(5A output), 4Ω (mA output)
Installation	Suspension
Output	Lead output

Outdoor Split-core Current Transformer Application

- Utility pole probe monitoring & management
- Power Distribution line monitoring
- Outdoor distribution board and panel
- Outdoor distribution transformer monitoring

Outdoor Split-core Current Transformer Features

- Outdoor rating IP68
- UV stabilized thermoplastic.
- Hi-potential voltage 10kV per min.
- Compact size, light-weight, simple Installation
- Over-voltage protection circuits
- permalloy core
- Industrial designed for outdoor and safety

Primary current	Secondary current	class
1000A-3000A	5A	0.5
1000A-5000A	1A	0.5

Working conditions
Operating temperature	-35°C to +65°C, not exceeding +40°C
Storage temperature	-40°C to +70°C
Ingress Protection	IP68
Environment	outdoors or indoors
The Height of above sea level	0- 3000m
Conditions	No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed.
